Ecosoft membrane element is made to provide stable and high quality of purified drinking water.
The production of Ecosoft membrane elements is a highly effective process using the industry’s leading membrane flat sheet and the experience of the Ukrainian manufacturer.
Related digital tools & certificates
Technical information
Specifications

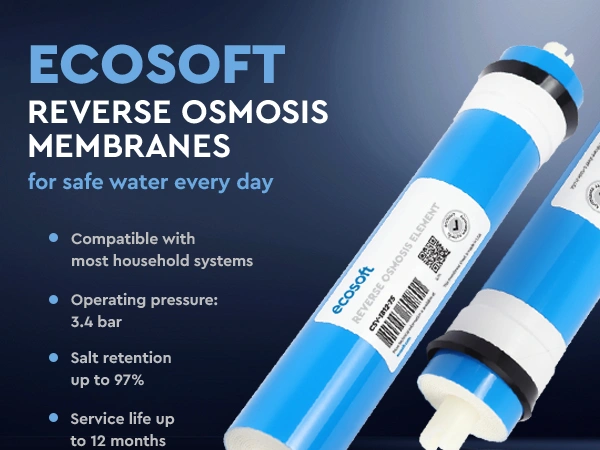

Membrane type — spiral-wound element with polyamide thin-film composite
- Membrane element type — 75 GPD
- Permeate volume — 7.9 L/hour
- Stabilized salt rejection — 97.0 %
- Applied pressure — 3.4 bar
- Purpose — domestic
Operating parameters
- Maximum operating water temperature — 45 °C
- Maximum operating pressure — 3.4 bar
- Maximum element pressure drop — 1.0 bar
- pH range, continuous operation — 3...11
- Maximum Feed Silt Density Index (SDI) — 5
- Free chlorine tolerance < 0.1

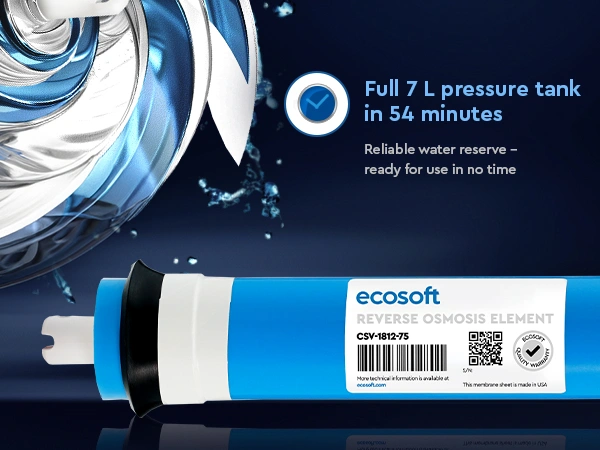

Full 7 L pressure tank in 54 minutes

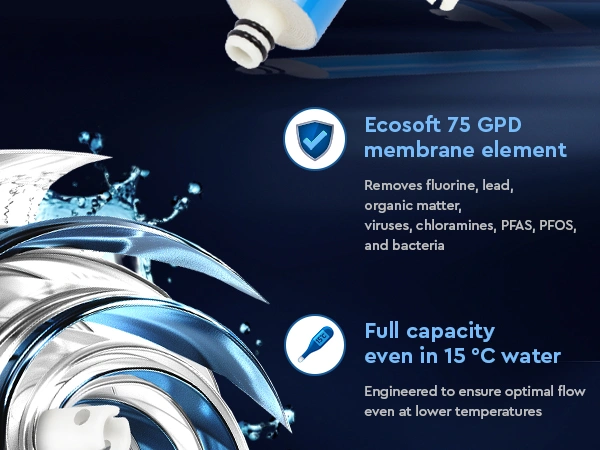

Full capacity even in 15 °C water
High selectivity - 97%
Individually vacuum tested
Shipped dry
Show More Features
