Ecosoft Pink 100 water softener

Product information

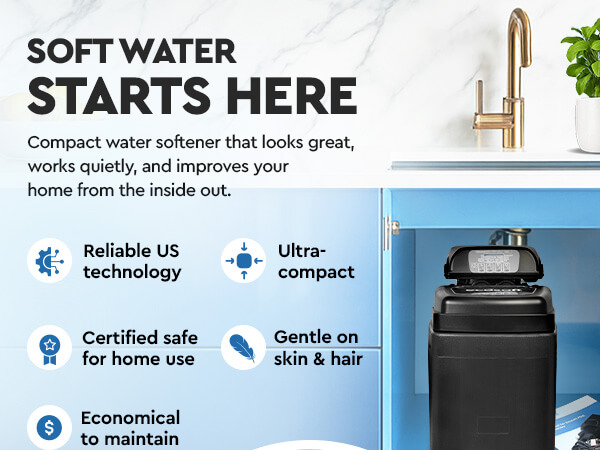

Ecosoft Pink 100 water softener is the most compact 11-liter model on the market, with a height of only 467 mm. Designed for under-sink installation, it’s the perfect choice for small kitchens and households of up to 3 people. Despite its size, it provides reliable limescale protection, extending the life of appliances and keeping surfaces free from scale. With softened water, everyday comfort improves – from easier cleaning to better efficiency of kettles, washing machines, and dishwashers.

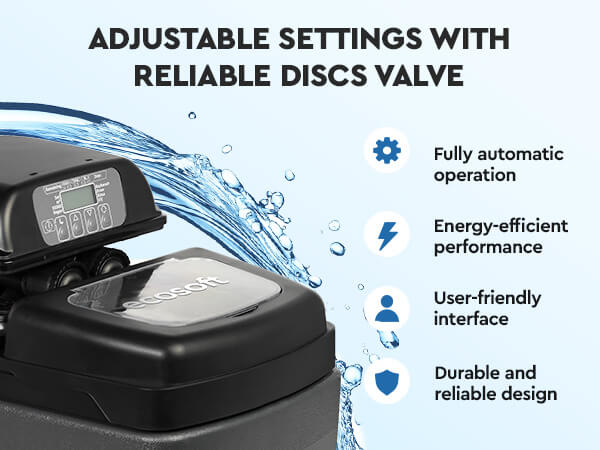

The Pink 100 requires no pre-filter or frequent servicing, saving both space and time. Built with a durable, scratch-resistant cabinet and the Ecosoft diamond valve, it’s a smart and long-lasting solution that combines simplicity, compact design, and effective performance.

Ecosoft Pink 100 water softener
Ecosoft Pink 100 water softener
Ecosoft Pink 100 water softener
Ecosoft Pink 100 water softener
Ecosoft Pink 100 water softener
Ecosoft Pink 100 water softener
Ecosoft Pink 100 water softener
Related digital tools & certificates

Technical information

Parameter
Specification
Flow rate (max.)
1.2 m³/h
Quantity of resin
11 L
Number of bathrooms (max.)
1
Number of people (max.)
3
Usage of salt per regeneration
1.2 kg
Usage of water per regeneration
50–60 L
Volume capacity (at 250 mg/L CaCO₃ inlet water hardness)
2.0 m³
Duration of regeneration (max.)
50 min
Pressure drop in service mode
0.5 bar
Inlet pressure
2–6 bar
Electrical requirements
230 V, 50 Hz
Power consumption
30 W
Inlet/outlet pipe connections
3/4″
Dry weight
14 kg
Dimensions (H × W × D)
467 × 270 × 430 mm
Pressure tank
1013″

Parameter
Softener body assembly (includes pressure tank with media inside, Ecosoft DV control valve)
Power adaptor 220–240 V / 12 W with European plug
Valve connection kit, 3/4″ male BSPT thread
Ecosoft Pink 100 water softener
Ecosoft Pink 100 water softener
Ecosoft Pink 100 water softener
Ecosoft Pink 100 water softener
Ecosoft Pink 100 water softener
Ecosoft Pink 100 water softener
Ecosoft Pink 100 water softener
Ecosoft Pink 100 water softener

FAQ

  • The Pink is a compact water softener for tap water, designed to remove hardness that cause limescale in pipes and household appliances. It protects your home’s plumbing system and extends the life of equipment like washing machines, boilers, and dishwashers.

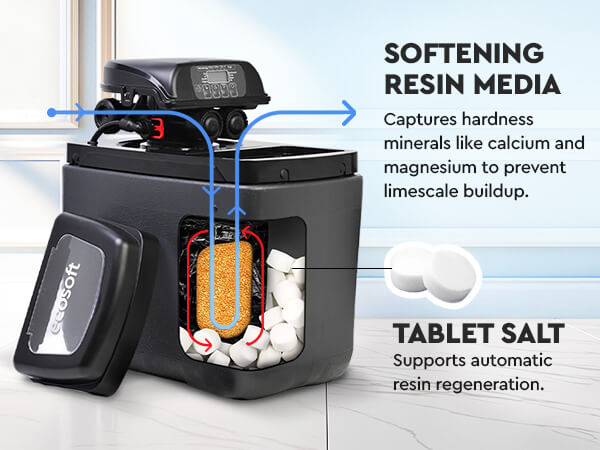

  • The Ecosoft Pink 100 works by cation exchange. Its 10 L of ion exchange resin reduces water hardness, while the Ecosoft DV control valve manages operation and regeneration after programming, salt loading, and forced regeneration by holding REGEN for 5 seconds.

  • The Ecosoft Pink 100 can handle influent water hardness up to 750 mg/L as CaCO₃. Its documented volume capacity is 1.2 m³ at 250 mg/L as CaCO₃, with an average mixing rate of influent hardness up to 0.3 m³. These values describe different limits.

  • Yes. The Ecosoft Pink 100 is suitable for residential use in a private house or apartment. Its ultra-compact cabinet is designed for under-sink installation in small kitchens and for households of up to 3 people, where space at home is limited.

  • Yes. Softened water has reduced hardness, which improves comfort and equipment protection, but remains safe for drinking. It contains fewer calcium and magnesium ions, but no harmful substances are added or introduced.

  • Salt should always be maintained above the water level in the brine tank — ideally, it should fill about 2/3 of the tank volume. The exact frequency depends on your water hardness and daily water usage, but for a typical household, this means checking the salt level every 2–4 weeks and refilling as needed. Never let the salt run out completely, as this may interrupt the regeneration process and reduce softening performance.

  • The Ecosoft Pink 100 regenerates when the set capacity is reached or when the day override is reached, if enabled. The control valve supports rES, dELY, and on 0 modes, and the day override can be set from 1 to 28 days or OFF, depending on settings.
