Ecosoft Pink 200 water softener

Product information

Ecosoft Pink 200 water softener is an ultra-compact 20-liter system for tap water, with a height of 741 mm. It is designed for households of up to 5 people and fits neatly in bathrooms or utility rooms, where space is often limited. By reducing water hardness, it delivers effective limescale protection, extending the life of appliances and plumbing while keeping surfaces cleaner. With softened water, everyday comfort improves – from softer laundry and shinier dishes to easier cleaning across the home.

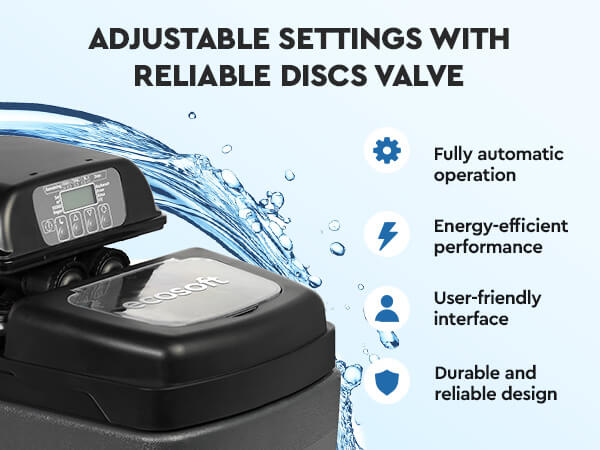

The Pink 200 features a built-in mixing valve to adjust water softness according to your needs. It requires no pre-filter or frequent servicing, making it a space-saving and low-maintenance solution. Built with a slim cabinet, scratch-resistant body, and reliable Ecosoft diamond valve, the Pink 200 combines durability, efficiency, and convenience for busy households.

Ecosoft Pink 200 water softener
Ecosoft Pink 200 water softener
Ecosoft Pink 200 water softener
Ecosoft Pink 200 water softener
Ecosoft Pink 200 water softener
Ecosoft Pink 200 water softener
Ecosoft Pink 200 water softener
Related digital tools & certificates

Technical information

Parameter
Specification
Flow rate (max.)
1.8 m³/h
Quantity of resin
20 L
Number of bathrooms (max.)
2
Number of people (max.)
5
Usage of salt per regeneration
2.4 kg
Usage of water per regeneration
60–70 L
Volume capacity (at 250 mg/L CaCO₃ inlet water hardness)
4.0 m³
Duration of regeneration (max.)
70 min
Pressure drop in service mode
0.5 bar
Inlet pressure
2–6 bar
Electrical requirements
230 V, 50 Hz
Power consumption
30 W
Inlet/outlet pipe connections
3/4″
Dry weight
29 kg
Dimensions (H × W × D)
741 × 270 × 430 mm
Pressure tank
1024″

Parameter
Softener body assembly (includes pressure tank with media inside, Ecosoft DV control valve)
Power adaptor 220–240 V / 12 W with European plug
Valve connection kit, 3/4″ male BSPT thread

To ensure proper operation, always keep the salt level in the brine tank above the water level. We recommend filling the tank to about two-thirds with salt. How often you need to top it up depends on your water hardness and daily consumption, but in most homes it’s enough to check every 2–4 weeks.

Important: Never let the salt run out completely, as this may stop regeneration and reduce the efficiency of your softener.

Ecosoft Pink 200 water softener
Ecosoft Pink 200 water softener
Ecosoft Pink 200 water softener
Ecosoft Pink 200 water softener
Ecosoft Pink 200 water softener
Ecosoft Pink 200 water softener
Ecosoft Pink 200 water softener
Ecosoft Pink 200 water softener

FAQ

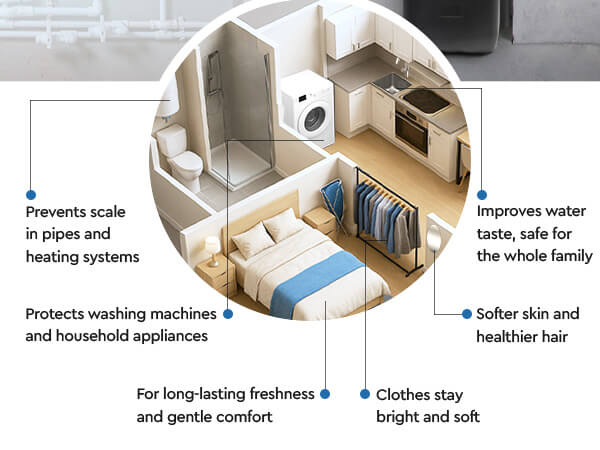

  • The Pink is a compact water softener for tap water, designed to remove hardness that cause limescale in pipes and household appliances. It protects your home’s plumbing system and extends the life of equipment like washing machines, boilers, and dishwashers.

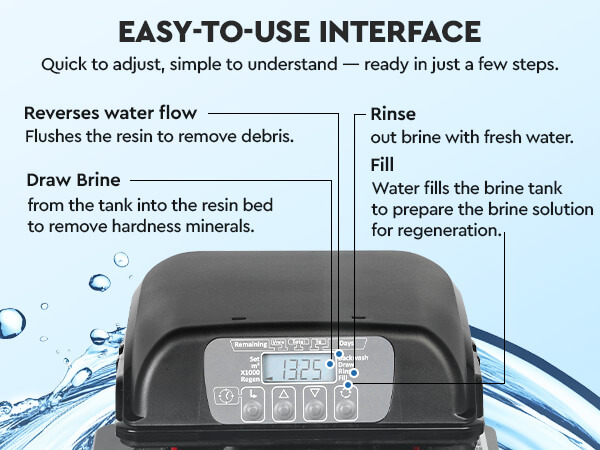

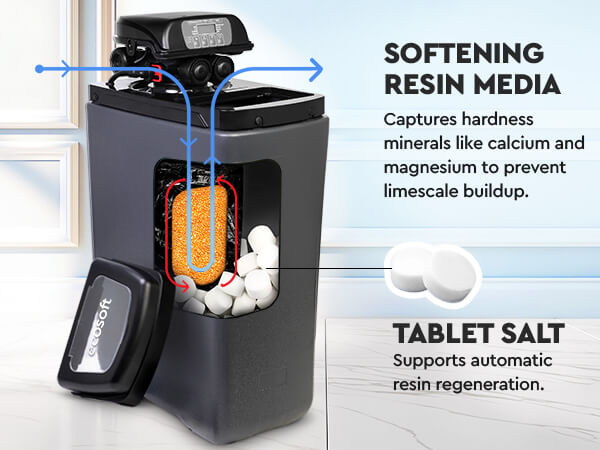

  • The Ecosoft Pink 200 softens water by cation exchange. It uses 20 L of ion exchange resin to reduce water hardness, while the Ecosoft DV control valve manages operation and regeneration. After programming, pour salt into the salt tank to 1/2–2/3 of its volume and start forced regeneration by holding REGEN for 5 seconds.

  • The Ecosoft Pink 200 can handle influent water hardness up to 750 mg/L as CaCO₃. This is the documented maximum hardness limit for feed water. Correct system settings depend on the actual hardness value entered in the Ecosoft DV control valve.

  • Yes. The Ecosoft Pink 200 is suitable for residential use in a private house or apartment. It is an ultra-compact 20-liter softener for tap water, designed for households of up to 5 people and space-saving installation in bathrooms or utility rooms.

  • Yes. Softened water has reduced hardness, which improves comfort and equipment protection, but remains safe for drinking. It contains fewer calcium and magnesium ions, but no harmful substances are added or introduced.

  • Salt should always be maintained above the water level in the brine tank — ideally, it should fill about 2/3 of the tank volume. The exact frequency depends on your water hardness and daily water usage, but for a typical household, this means checking the salt level every 2–4 weeks and refilling as needed. Never let the salt run out completely, as this may interrupt the regeneration process and reduce softening performance.

  • The Ecosoft Pink 200 requires softener salt pellets. Fill the salt compartment with salt pellets and keep it at least half full. During setup, add salt to 1/2–2/3 of the salt tank volume after programming, then start forced regeneration by holding REGEN for 5 seconds.
