Ecosoft 3P Grey Mono 10" water filter with venturi valve + drain1”
Ecosoft 3P Grey Mono 10" water filter with venturi valve + drain1”
Product information
The three-piece design (head-nut-bowl) is intended for water purification in both residential and commercial applications. A key feature of this model is the drain valve. The raindrop-shaped bowl is designed to completely expel all collected sediments. A grid at the bottom of the bowl forms a collection tank, keeping the filter cartridge clean from floating sediments. This ensures maximum filtration efficiency and allows for quick removal of accumulated debris.
Technical information
Technical specifications
- Materials: Bowl - polyethylene (PET); Head - polypropylene (PP) with brass connection units
- Clamping: Threaded
- O-ring: EPDM
- Max. Working Pressure: 8 bar
- Max. Working Temperature: From 5°C (41°F) to 50°C (122°F)
- Bracketing: Horizontal
- Connection: 1”
- Package: Empty housing without filter cartridge
Packaging
- Quantity per package: 6 pcs
- Pieces on pallet: 216 pcs
Poland
Poland

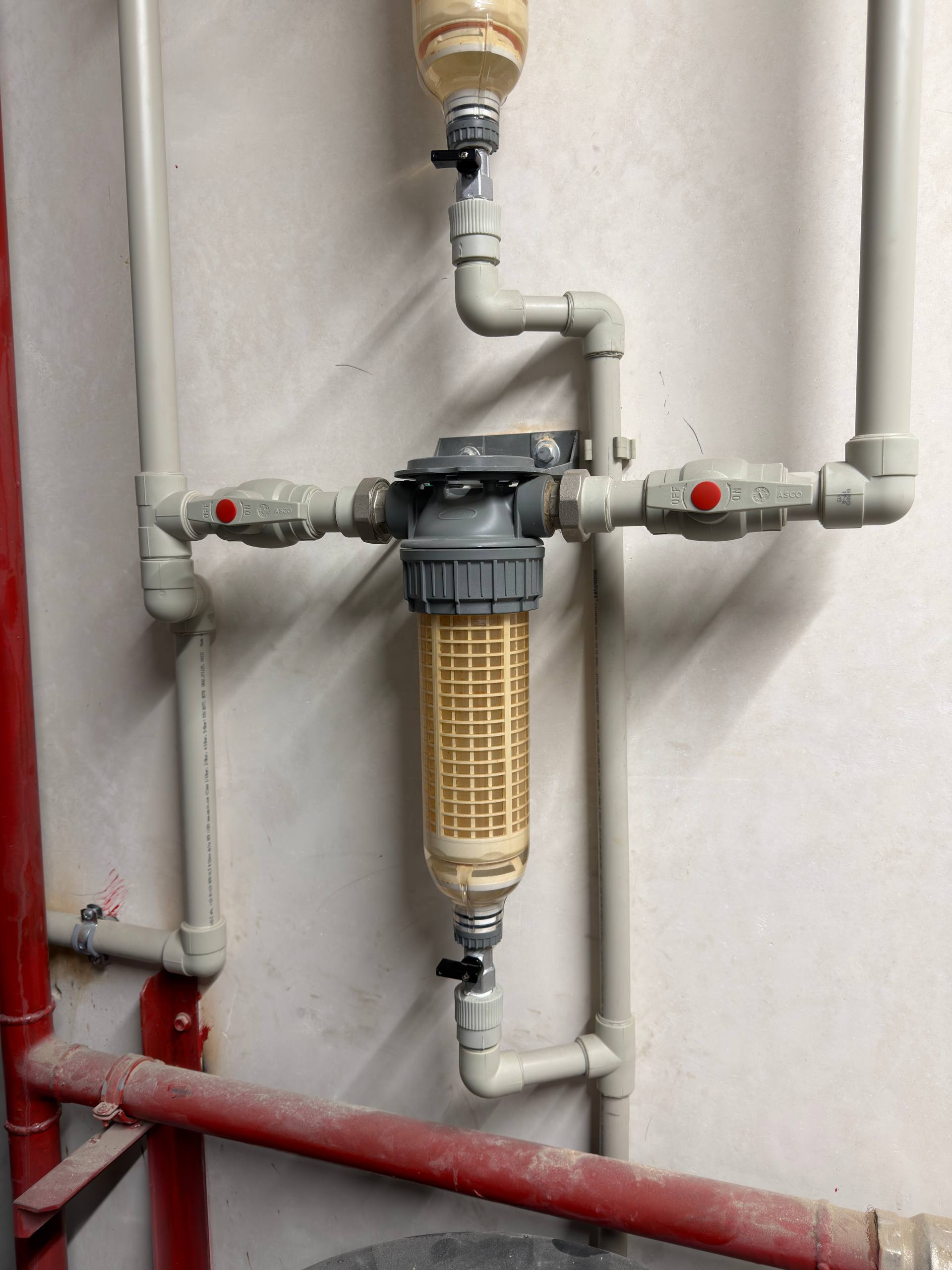

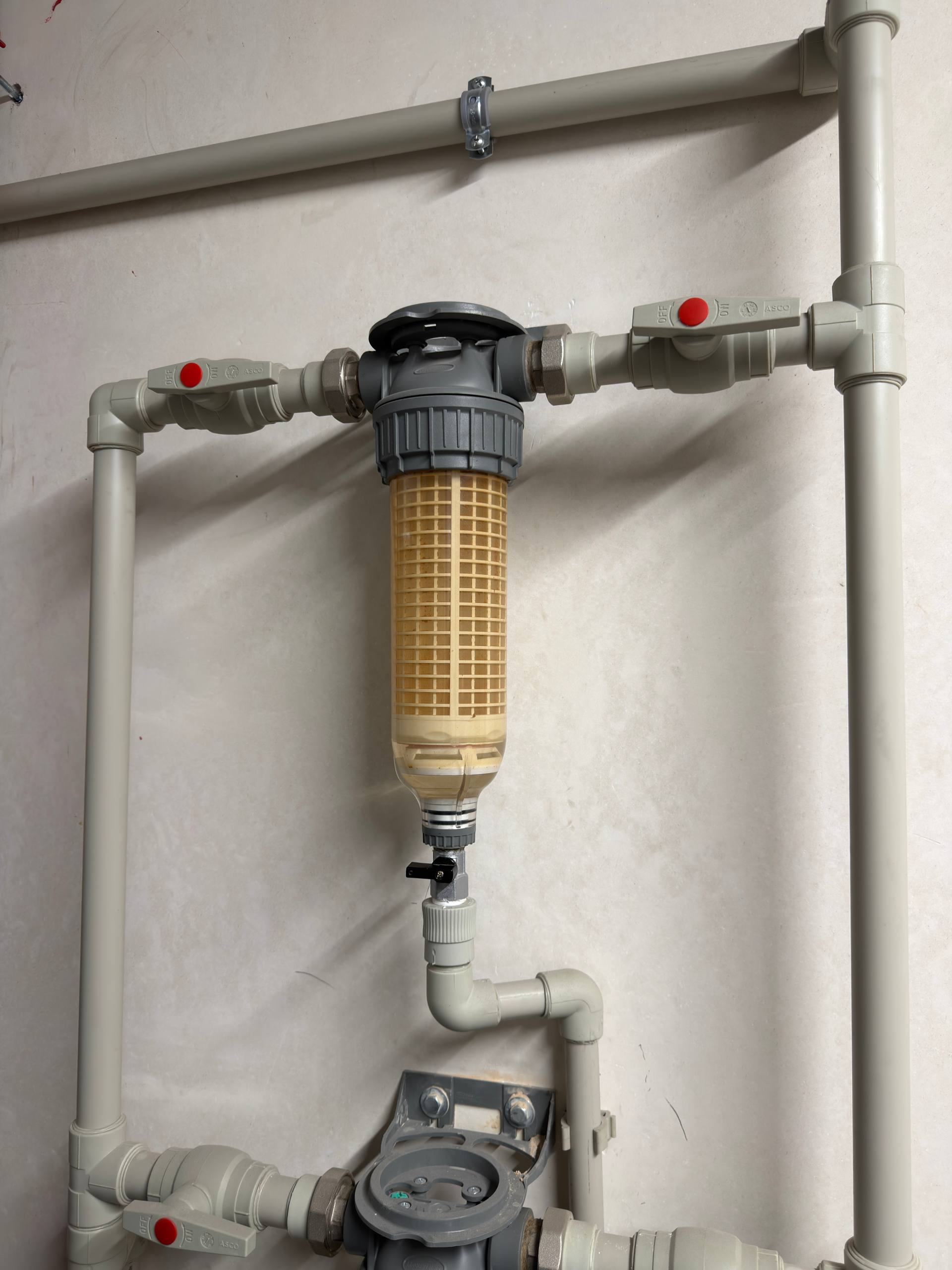

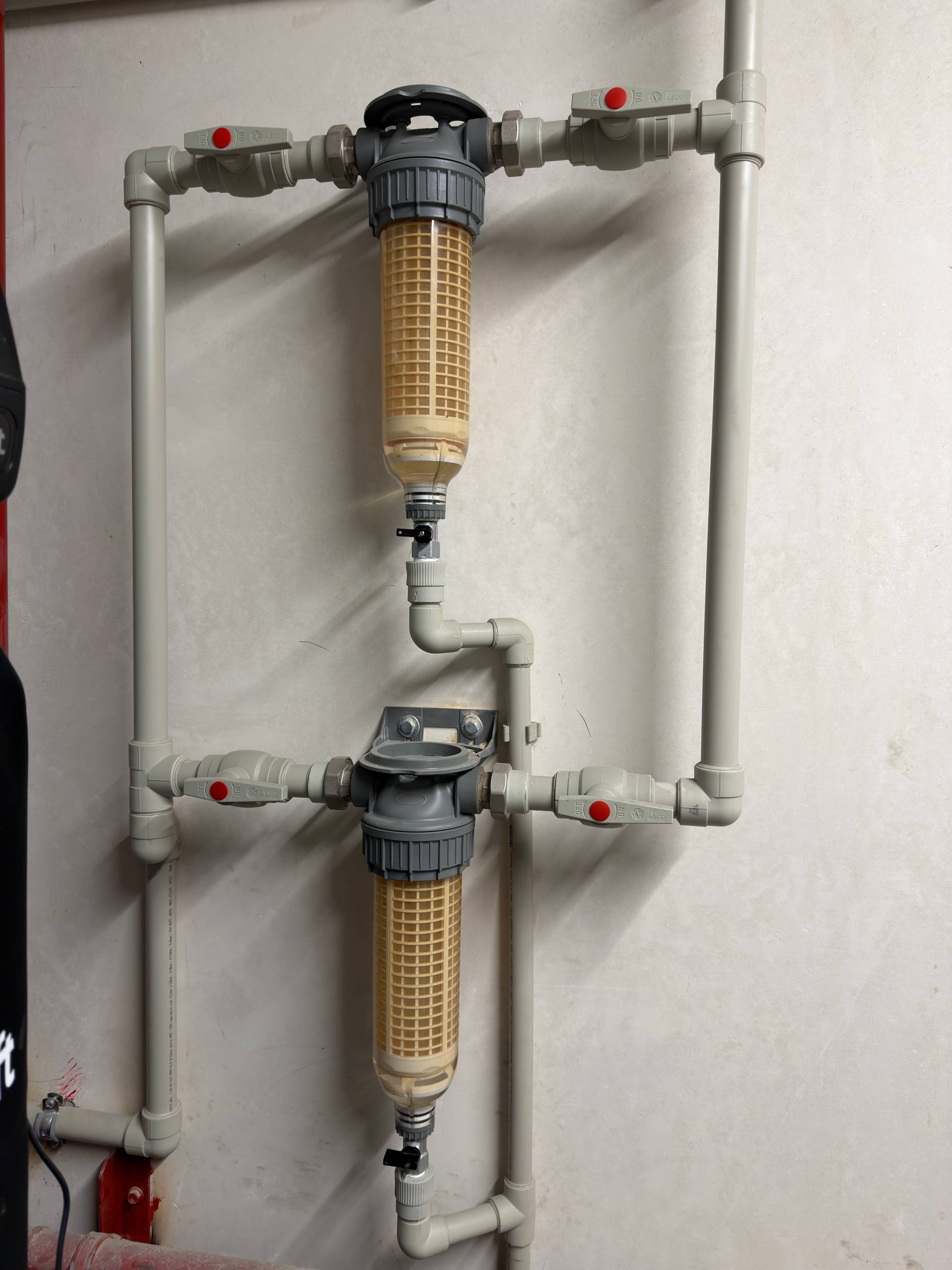

We installed two of these filters in parallel at our small manufacturing facility. They’ve been working flawlessly, catching coarse particles before the water enters our classic media tank systems.
We noticed that you can mount a pressure gauge right on the filter head, but we didn’t need it since we already had plenty of monitoring gauges in our setup.
A huge plus is the standard 9 3/4" sizing instead of some proprietary format, so finding replacement elements down the road will never be an issue.
