Set of equipment

CE 1.5" control valve ¹

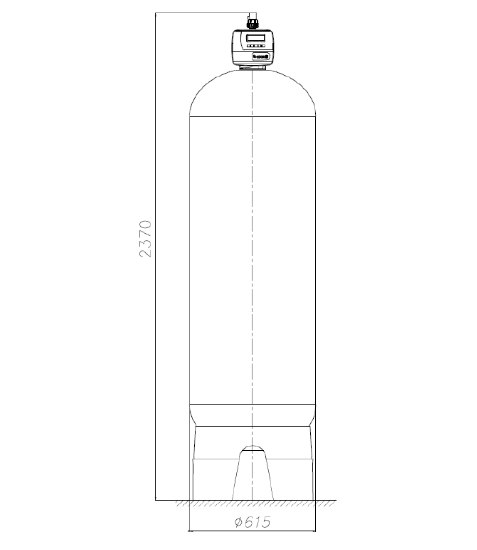

^‍Pressure tank 24x72, 4" ²

           ¹ CE 1.5" valve assembly (V15CEDТ):

• CE 1.5" control valve
• 1,5" meter assembly
• DLFC
• Top stack distributor, insert 50 mm
• Drain fitting 1''
• Power supply
• Funnel
• Valve instruction manual, Instruction manual

             ² Pressure tank assembly

• Pressure tank 24x72, 4"
• Adaptor 4" - 2"
• Riser DN 50 mm
• Bottom stack distributor, 4", 50 mm solvent

CE CONTROL VALVE KEY FEATURES

• Regeneration control by water volume : delayed regen, immediate, both
• Possibility to change the cycle of regeneration stages and their range of time
• Multilanguage menu : English, German, French, Ukrainian
• Different setting modes are available:

1. twin or duplex configurations
2. up to 6 systems to the system controller
3. 2 external devices simultaneously can be connected

SPECIFICATIONS

• Water flow rate*

          - Service (pressure drop 1 bar): 15.9 m³/h

          - Backwash (pressure drop 1,7 bar): 11.8 m³/h

• Inlet, outlet: G 1.5″
• Drine: G 1.25″
• Brine line: G 3/8′′
• Operating pressure: 2-6 bar
• Operating temperature: +4...+30 ^oC
• Electrical requirements: 230 V, 50 Hz
• Electrical power: 30 W
• Volume of pressure tank: 450 L
• The volume of the rounded side: 46 L
• Dry system weight: 52 kg

RECOMMENDED MEDIA VOLUME

• Granular activated carbon Centaur 12x40: 105 kg
• Activated Carbon Filtrasorb 300: 125 kg
• Filter-AG PLUS media: 226.4 L
• Filter-AG material: 226.4 L
• Birm filter media: 226.4 L

The volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com

ACCESSORIES**

• V3070 WS2 Service or Fill Switch Assembly
• V3097BSPT WS1.5" No Hard Water Bypass Male x Female BSPT
• V3071BSPT MAV 1.5 BSPT Revision 2
• V3040BSPT-15 WS1.5 Meter Assembly Male x Female NPT 15' Meter Cable

** Not included in the basic set. Can installed as additional equipment.
