Ecosoft CUBE 100 water softener

Product information

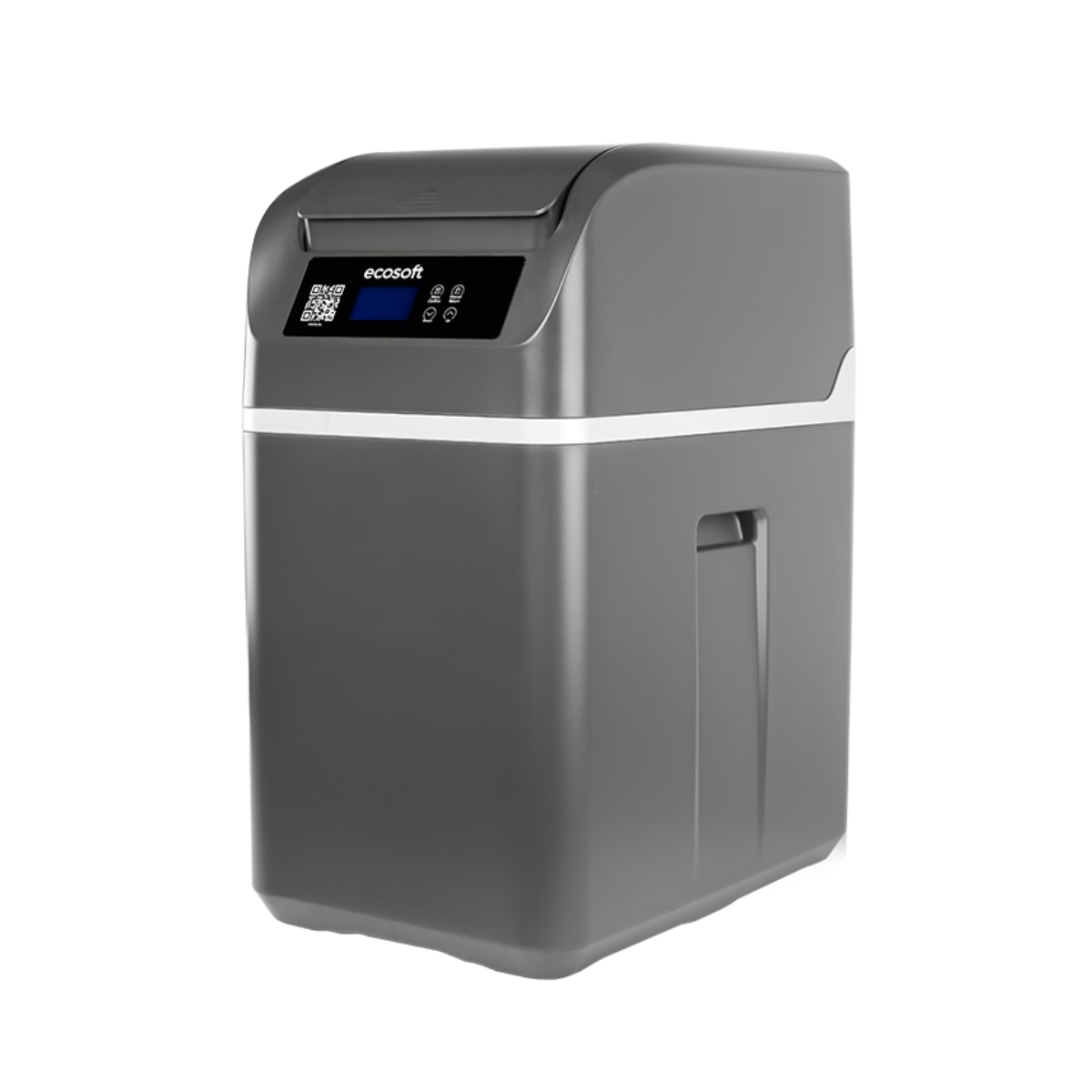

Ecosoft CUBE 100 water softener is an ultra-compact all-in-one solution designed for apartments. The system effectively softens hard water, protecting household appliances, plumbing, and heating elements from limescale buildup while improving everyday water comfort. Its compact design allows easy installation in kitchens or utility areas with limited space, delivering reliable softened water without compromising performance.

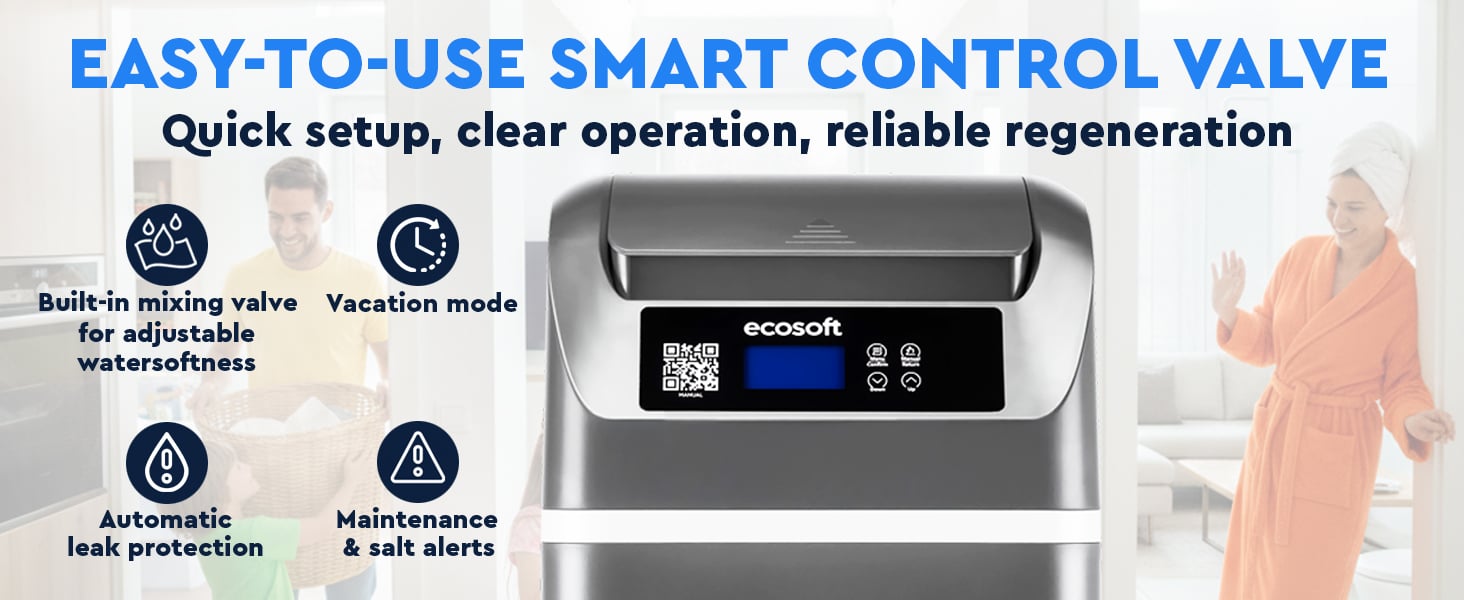

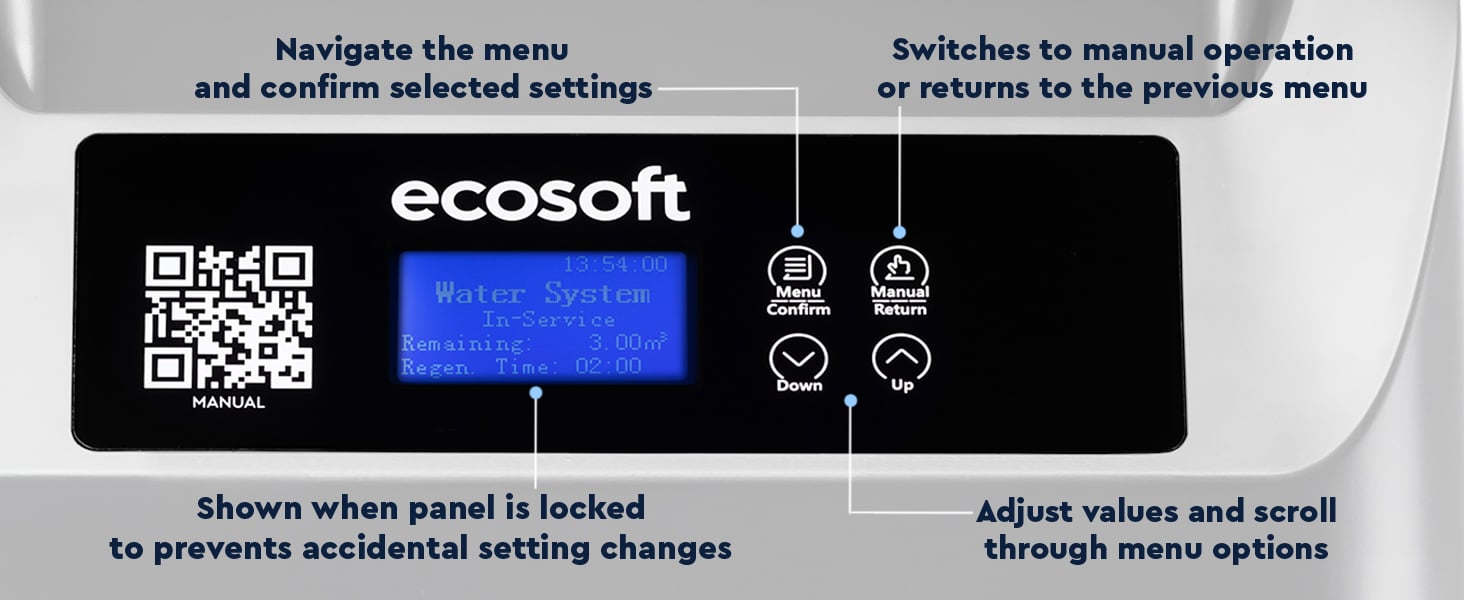

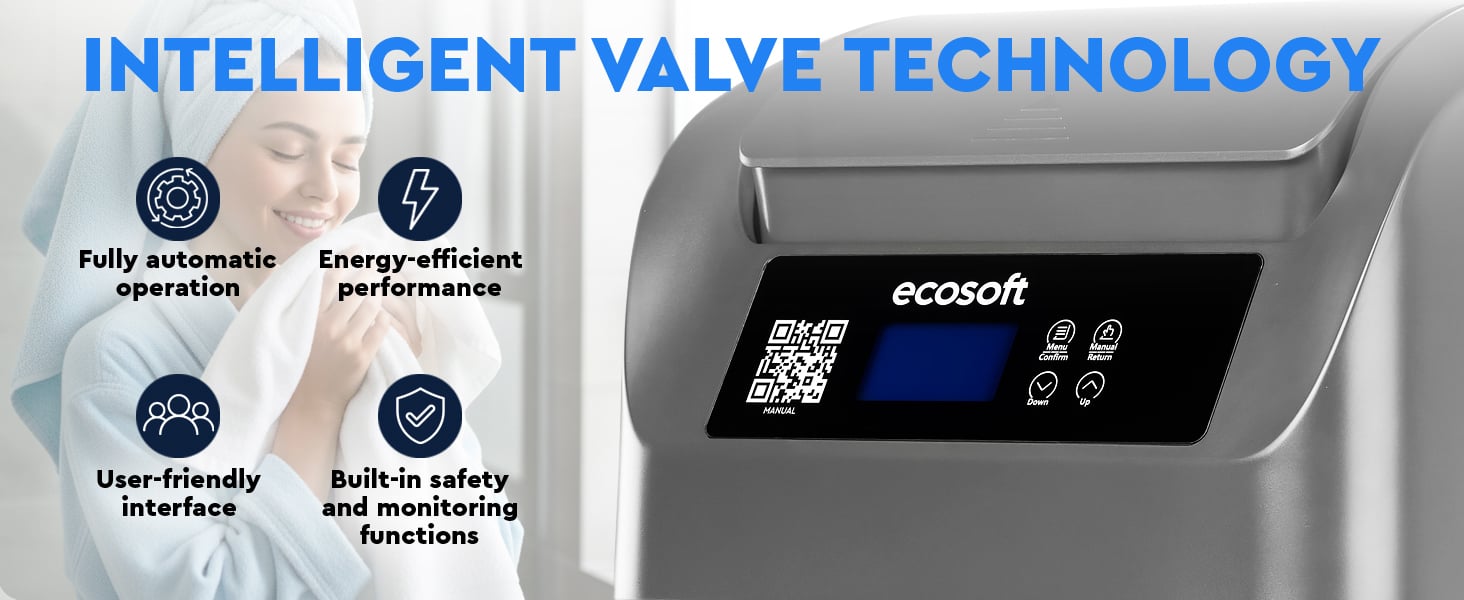

The built-in smart valve manages regeneration automatically based on water consumption, supporting efficient use of salt and water. Integrated functions such as brine dry mode, vacation mode, salt shortage alerts, and service reminders help maintain stable performance with minimal user effort. User-friendly controls and convenient service access ensure straightforward operation and maintenance.

Ecosoft CUBE 100 water softener
Ecosoft CUBE 100 water softener
Ecosoft CUBE 100 water softener
Ecosoft CUBE 100 water softener
Ecosoft CUBE 100 water softener
Ecosoft CUBE 100 water softener
Ecosoft CUBE 100 water softener

Water softeners

Related digital tools

Technical information

Parameter
Specification
Flow rate (max.)
1.6 m³/h
Quantity of resin
10 L
Usage of salt per regeneration
1.0 kg
Usage of water per regeneration
100 L
Volume capacity (at 250 mg/L CaCO₃ inlet water hardness)
2.0 m³
Duration of regeneration (max.)
110 min
Pressure drop in service mode
0.5 bar
Inlet pressure
2–6 bar
Electrical requirements
230 V, 50 Hz
Power consumption
30 W
Inlet/outlet pipe connections
3/4″
Dry weight
21.43 kg
Dimensions (H × W × D)
543 × 450 × 320 mm

Parameter
Softener body assembly (includes pressure tank with ion exchange resin inside and integrated cabinet)
Power adaptor 220–240 V / 12 V with European plug
Bypass connection kit, 3/4″ male BSPT thread
Drain and overflow hoses, Metal clamps, Drain fitting

Parameter
Specification
Hardness
350 mg/L CaCO₃
Iron
0.2 mg/L
Manganese
0.05 mg/L
Chemical oxygen demand
5 mg/L O₂
Sediment prefilter rating
100 μm

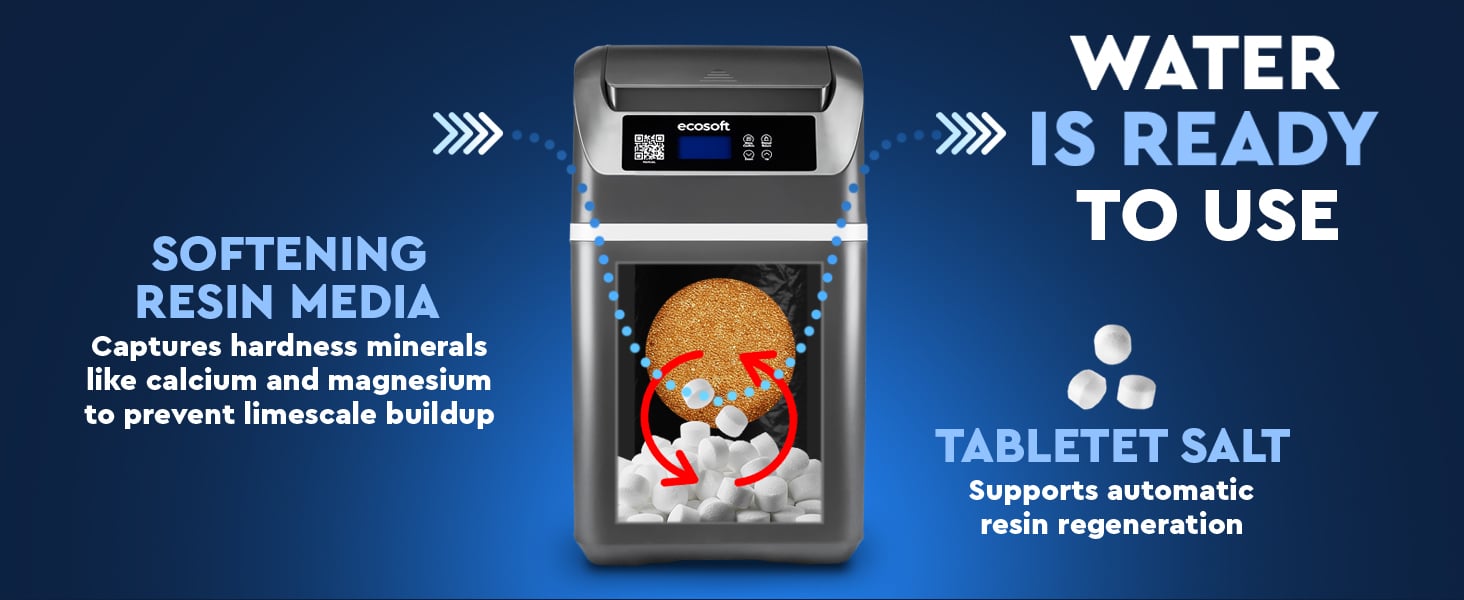

The integrated brine tank is designed for convenient everyday use and does not require frequent attention. Simply keep the salt level above the water level – ideally about two-thirds full. For most households, checking the salt level every 2–4 months is usually sufficient.

Important: Do not allow the salt to run out completely. Insufficient salt may interrupt the regeneration process and reduce the softening efficiency of the system.



Vacation mode helps protect the resin when the system is not in use for an extended period, such as during holidays or long absences. Smart alerts notify you about low salt levels and service needs, making routine maintenance easier and more predictable.

Ecosoft CUBE 100 water softener
Ecosoft CUBE 100 water softener
Ecosoft CUBE 100 water softener
Ecosoft CUBE 100 water softener
Ecosoft CUBE 100 water softener
Ecosoft CUBE 100 water softener
Ecosoft CUBE 100 water softener
Ecosoft CUBE 100 water softener
Ecosoft CUBE 100 water softener
Ecosoft CUBE 100 water softener
