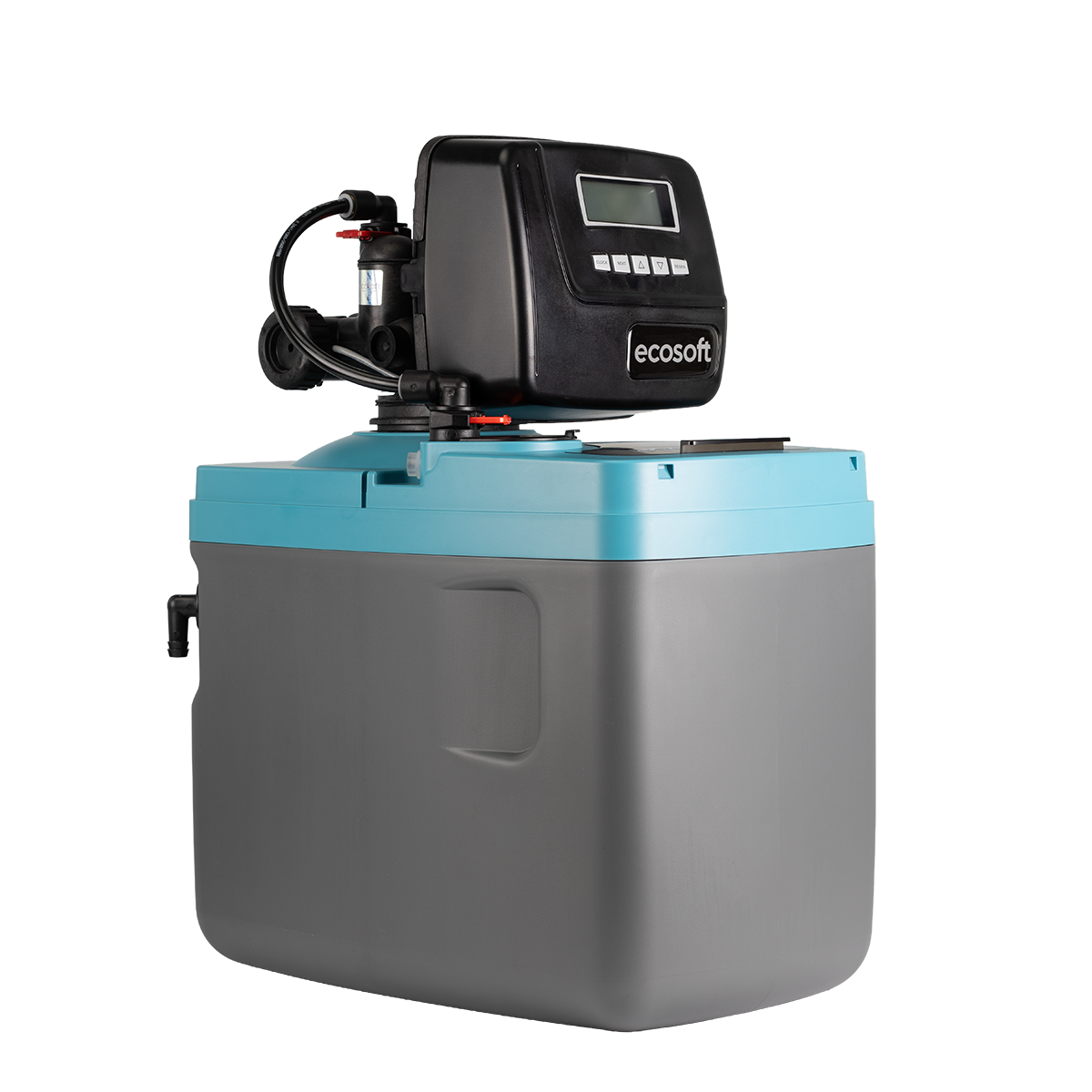

Ecosoft A-Soft 110 water softener with CE(MV) valve

Product information

A-Soft is an ultra-compact water softener designed for apartments andspacelimited installations. Installed under the sink or in technical cabinets, it delivershigh flow performance and efficient operation despite its minimal footprint.

Equipped with high performance Ecotile Ultrasoft resin and the Ecosoft CE valve, ASoftensures reliable softening for modern households

Related digital tools & certificates

Technical information

Parameter
Specification
Flow rate
up to 2,5 m³/h
Quantity of resin
11 L
Number of bathrooms
up to 1
Number of people
4
Usage of salt per regeneration, kg
1,2
Usage of water per regeneration, l
50-60
Volume capacity, m³ 250 mg/L CaCO₃ inlet water hardness
2,4
Duration of regeneration, minutes
up to 50
Pressure drop in service mode, bar
0,5
Inlet pressure, bar
2–6
Electrical requirements
230 V, 50 Hz
Power consumption, W
30
Inlet/outlet pipe connections
3/4″
Dry weight, kg
14
Dimensions, (Height × Width × Depth ), mm
543 × 284 × 441
Pressure tank, inch
1013

Parameter
Softener body assembly (includes pressure tank with media inside, Ecosoft CE control valve)
Power Adaptor 220-240V-12V European plug
Valve connection kit 3/4" Male BSPT Thread
Drain & Overflow hoses 16 mm
Metal clamp 2 pcs
Drain fitting ¾" х 16 mm

Parameter
Specification
Hardness
500 mg/L CaCO₃
Iron
0.2 mg/L
Manganese
0.05 mg/L
Chemical Oxygen Demand
5 mg/L O₂
Water temperature
+4…+30 °C

To ensure proper operation, keep the salt level in the brine tank above the water level at all times. We recommend keeping the tank around two-thirds full of salt.

How often you need to add salt depends on water hardness and daily consumption, but for most homes, it’s enough to check it every 2 to 4 weeks.Important: Never let the salt run out completely, as it may stop the regeneration process and reduce the efficiency of water softening.

Local support

Contact
Need support from a local Expert?

Our partners are happy to support you with their expertise, ensuring a Professional installation and Easy Maintenance.

Just leave a short note and we will connect you with one of our local partners!

This will help us to quickly get in touch with you

Postal Code
I accept the Data Privacy
CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.

FAQ

  • The Core is a compact water softener for tap water, designed to remove hardness that cause limescale in pipes and household appliances. It protects your home’s plumbing system and extends the life of equipment like washing machines, boilers, and dishwashers.

  • Yes. Softened water has reduced hardness, which improves comfort and equipment protection, but remains safe for drinking. It contains fewer calcium and magnesium ions, but no harmful substances are added or introduced.

  • Salt should always be maintained above the water level in the brine tank — ideally, it should fill about 2/3 of the tank volume. The exact frequency depends on your water hardness and daily water usage, but for a typical household, this means checking the salt level every 2–4 weeks and refilling as needed. Never let the salt run out completely, as this may interrupt the regeneration process and reduce softening performance.
