• Сompact and elegant design
• Up to 3 times less salt usage per regeneration compared to competitive products
• Fully automated operation and regeneration
• Versatile modern control valve with multilingual menu
• 12 month warranty

Purification technology:

ECOMIX® C — provides iron-free crystal clear soft water with bluish tint. Ecosoft Titanium Gold series filters reduce iron, hardness, manganese, ammonium, and organic matter.

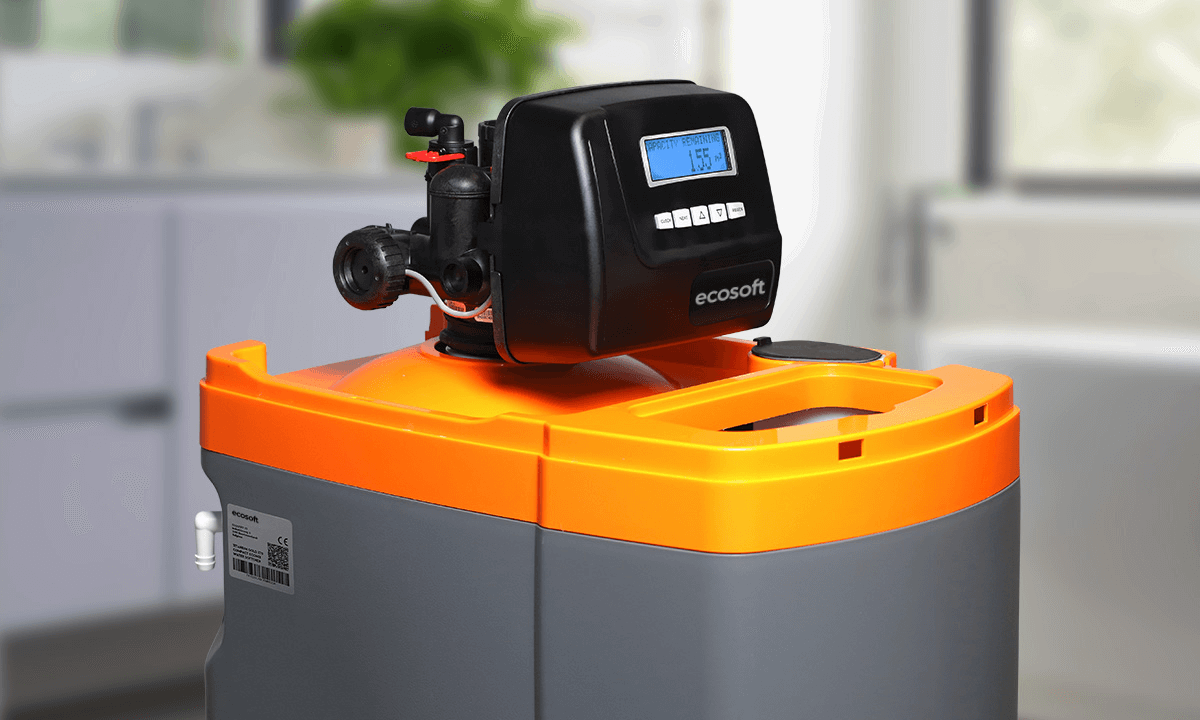

Control valve:

Ecosoft Clack WS1 CE (time and volume regenerated).

Components:

1. Cabinet housing with pressure tank, riser pipe and bottom distributor.
2. Filter media.
3. Cardboard box with color printing.
4. Control valve with injector.
5. Drain line flow control (DLFC).
6. Top distributorand power adaptor.
7. User manual.

Options:

• Inline bypass assembly
• Inline external mixing valve
• Motorized No Hard Water Bypass Valve for bypass shutoff during regeneration
• Microswitch (regeneration activated)

Technical specifications

• Flow rate:

         Operating — 1.0 m³/h

         Maximum — 1.2 m³/h

• Quantity of ECOMIX® — 25 L
• Volume capacity* — 3 m³
• Usage of salt per regeneration** — 2.5–4.0 kg
• Usage of water per regeneration — 0.25 m³
• Duration of regeneration — 80–110 minutes
• Pressure drop in service mode — 0.5 bar
• Inlet pressure — 2–6 bar
• Electrical requirements — 230 V, 50 Hz
• Power consumption — 30 W
• Inlet/outlet pipe connections — 1’’

*for hardness at 5 meq/L(250 mg/L CaCO₃)

**it is recommended to use Ecosil pelletized salt for regeneration

Feed water requirements

• Hardness — 15 meq/L (750 mg/L CaCO₃)
• Iron — 15 mg/L
• Manganese — 3 mg/L
• Chemical oxygen demand — 20 mgO₂/L
• Ammonium — 4 mg/L
• Required level of purification of sediment particles — 100 μm
• Initial water temperature — +4…+30 °С
