The MO36000TI6 is a high-output RO system providing 36000 liters per day. With full digital control and Econnect for real-time data, it is ideal for water-intensive industrial processes.
Ecosoft controller OC6000 with econnect functionality providing online access to the RO machine
Easy to use thanks to smart architecture
Universal system construction allows connecting options of permeate flushing and raw water blending
Grundfos worldwide guaranty
CE marked and confirmed to be safe in accordance with EC New Approach Directives
Show More Features
Flow capacity
1500
L/h
Inlet water pressure
2..4
bar
Maximum TDS
3000
mg/L
Influent flow demand (service)
2000–2500
L/h
Operating pressure
8..12
bar
Power consumption
2
kW
Product
Box
Image Size
DIMENSIONS, H×W×D:
1490×870×580
mm
Filter weight
130
kg
Image Box
Dimensions, H×W×D:
1900×1200×750
mm
Filter weight
170
kg
Equipment
- Grundfos™ CM 3-14 pump
- 300 psi membrane vessel
- BB20 sediment prefilter
- Electrical panel w/ Ecosoft controller
- Danfoss solenoid valves
- Piping, instrumentation
- Stainless steel frame
- Wooden crate
- PP melt blown sediment filter, 5 micron
Options

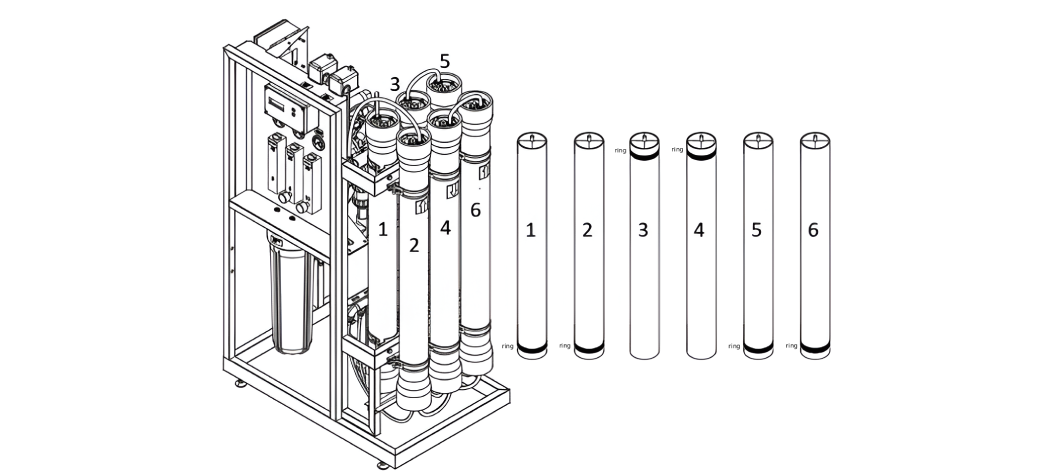

- Filmtec™ ХLE-4040 / LCLE-4040 or Ecosoft ELP-4040 membrane
- Dosing pump for antiscalant
- Versatile set for raw water blending (120...1080 L/h) or permeate flushing
Connections:
- influent water: 1"
- permeate: 1″
- concentrate: 1"
- antiscalant dosing port: ½″
- raw water blending port: ⅜″
- permeate flushing input port: 1"
Specifications
- Permeate capacity*: 1500 L/h
- Permeate recovery**: 75%
- Maximum TDS: 3000 mg/L
- Influent flow demand
- 2000…2500 L/h (service)
- 3000…4000 L/h (rinse) - Operation pressure: 8…12 bar
- Maximum pressure: 14 bar
- Electrical requirements: 230 V, 50 Hz (1 ph)
- Electrical power: 2.0 kW
- Prefilter rating: 5 μm

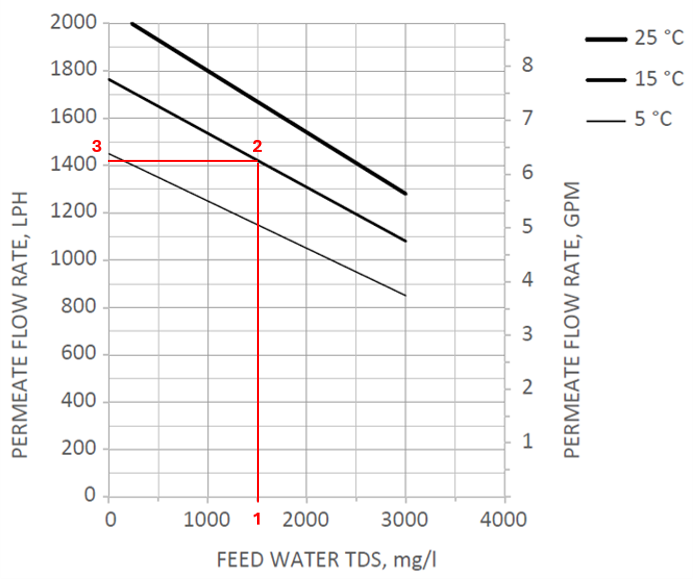

* depends on feed water TDS, temperature, and permeate recovery
** for low scaling/fouling water
Feed water requirements
- Influent water temperature: +5...+40 °С
- Residual chlorine, max: 0.1 mg/L
- Hardness: up to 3 meq/L (150 mg/L CaCO₃)
- Iron: up to 0.1 mg/L
- Manganese: up to 0.05 mg/L
- Silicate: up to 20 mg/L
- Chemical oxygen demand, max: 4.0 mg О₂/L
- Hydrogen sulfide: none
The limitations may be exceeded if using antiscalant, oxygen scavenger, or other RO chemical pretreatment.
Controller ОС 6000 provides best possibilities for professional maintenance:
— measures flow rate and volume of purified water;
— controls quality of feed water and treated water;
— purified water discharge mode;
— remote update of firmware.
Applications
- Steam boilers
- Heating and cooling circuits
- Breweries and beverage production
- Livestock and poultry farms
- Glazing factories
- Laundry and car wash
